Hertz SX 165 NEO SPL Show Series 6.5" 2-Way Coaxial Speakers - Pair (SX165NEO)

Hertz SX 165 NEO SPL Show Series 6.5" 2-Way Coaxial Speakers - Pair (SX165NEO)

The Hertz SX 165 NEO is built for enthusiasts who demand powerful output, compact design, and dependable performance in demanding environments. Designed as part of the SPL Show Series, this 6.5-inch 2-way coaxial speaker combines a lightweight Neodymium motor with a high-efficiency design to produce impressive sound pressure levels without taking up unnecessary space. Whether you're building an outdoor audio system or upgrading an existing setup, these speakers are engineered to deliver loud, dynamic sound while standing up to the elements.

Designed for High SPL Performance

At the heart of the Hertz SX 165 NEO is a compact yet powerful Special Neodymium N38 H motor. This lightweight magnet provides the strength needed for exceptional efficiency while keeping the speaker's overall size and weight to a minimum. Think of it as packing heavyweight performance into a lightweight frame—more output without the extra bulk.

With a sensitivity rating of 96.5 dB and 100 watts RMS power handling (200 watts peak), the speaker is engineered to deliver impressive volume while maintaining clarity throughout its operating range.

Weather-Resistant Cone for Outdoor Use

Outdoor audio systems face constant exposure to moisture, humidity, and sunlight. That's why the Hertz SX 165 NEO uses a high-stiffness pressed-paper cone treated with water-resistant, humidity-resistant, and anti-UV coatings. This nature-proof design helps preserve the speaker's performance while maintaining the lightweight characteristics that contribute to its high output.

A protective rubber gasket also helps prepare the speaker for demanding outdoor environments where durability matters just as much as sound quality.

Built to Handle Serious Power

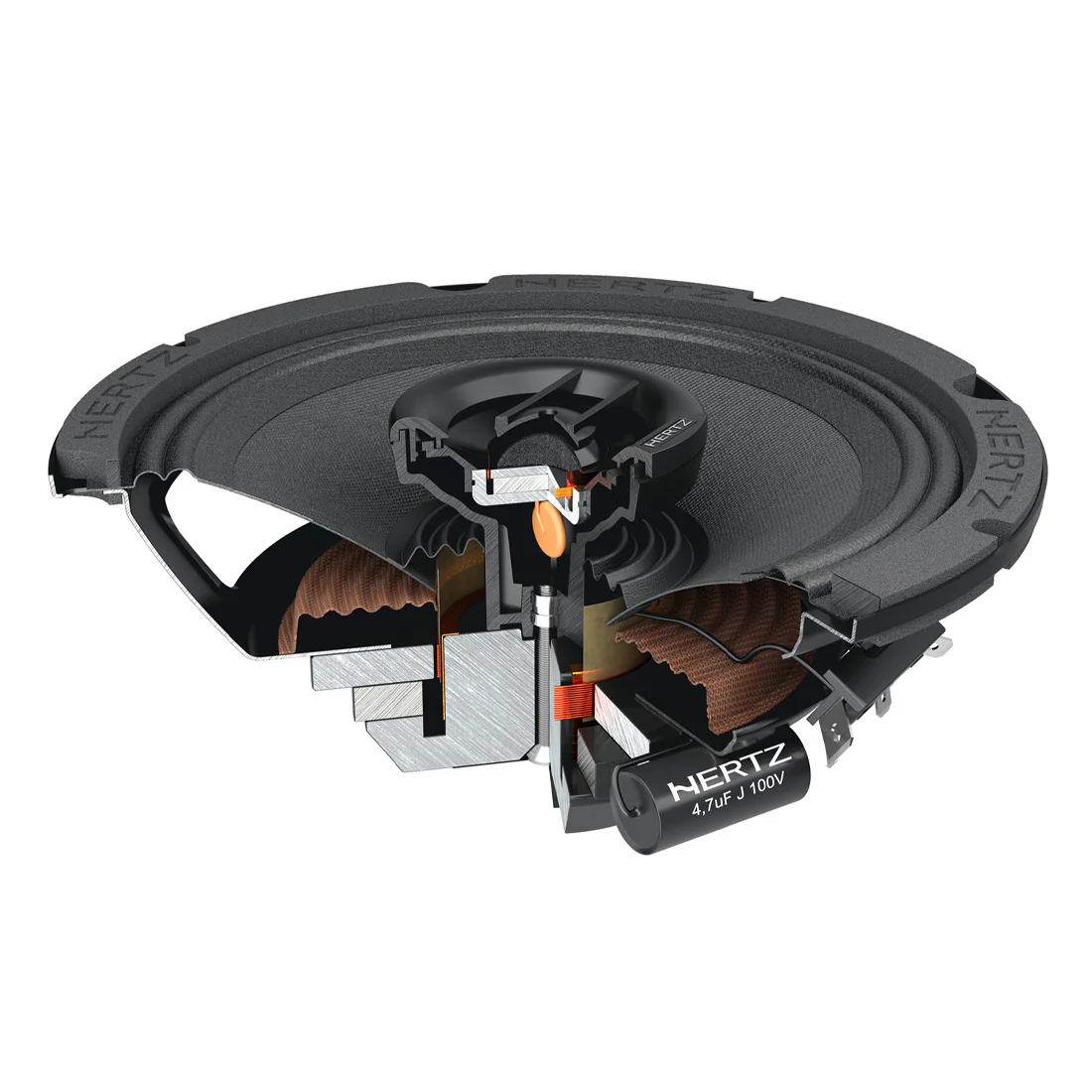

High output requires dependable internal components. The Hertz SX 165 NEO features a double-layer copper voice coil wound on a durable polyamide former, allowing it to handle significant power while maintaining consistent performance. The combination of efficient motor design and robust voice coil construction gives the speaker the ability to play loud without compromising reliability.

Large Hi-SPL Tweeter for Crisp High Frequencies

The integrated 1.4-inch PEI dome tweeter is designed specifically for high SPL applications. Using a Neodymium magnet, it delivers detailed high frequencies while matching the efficiency of the woofer. A resettable solid-state protection circuit helps safeguard the tweeter during demanding playback, allowing it to continue performing even under high-output conditions.

Flexible Connection Options

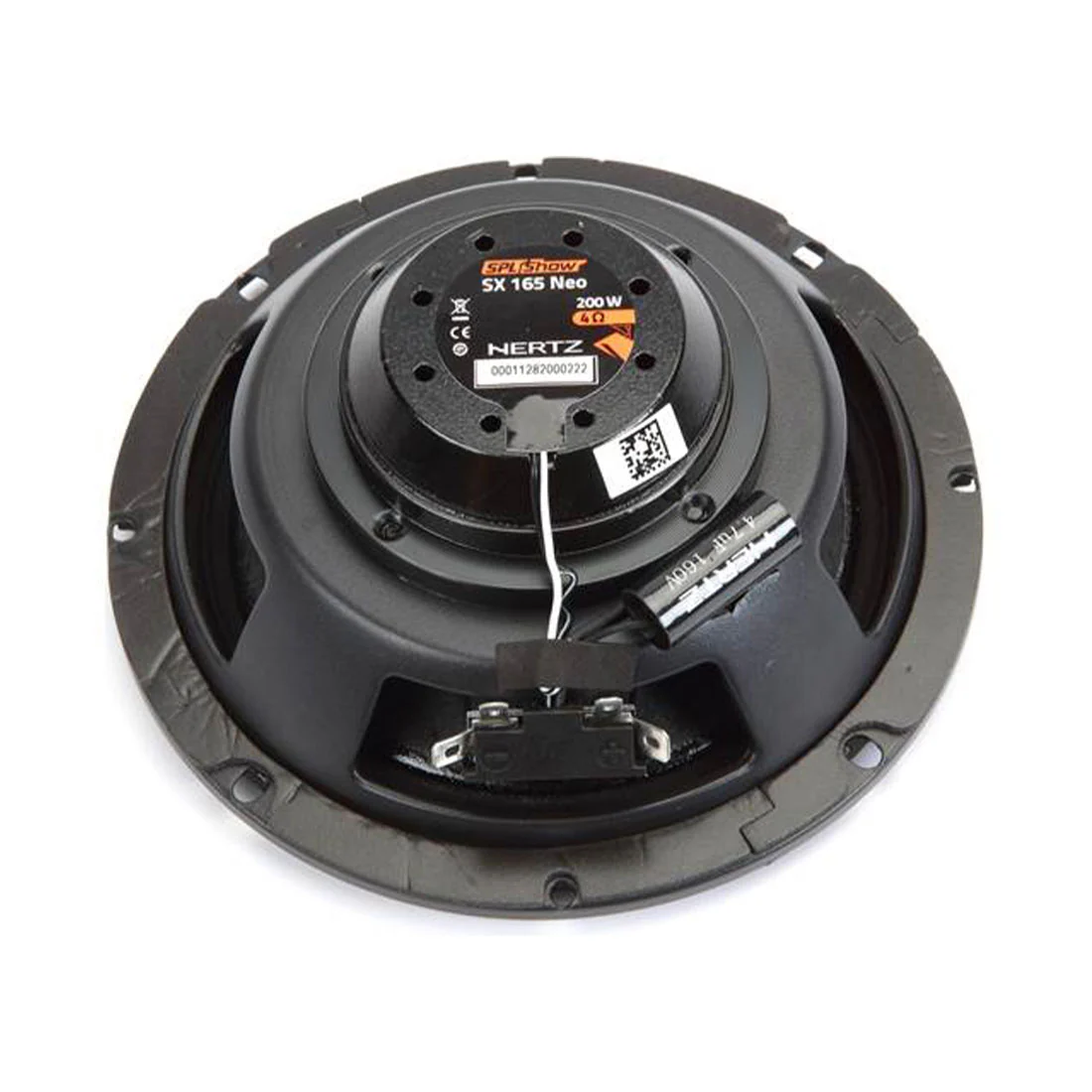

The Hertz SX 165 NEO includes double Faston terminals that make daisy-chaining multiple speakers simple while remaining compatible with many common motorcycle audio connections. Need to expand your system later? The built-in connection design makes adding additional speakers much more convenient.

Engineered for Efficient Performance

Every component works together to maximize efficiency. The 4-ohm impedance, 38 mm woofer voice coil, and frequency response of 100 Hz to 20 kHz allow the speaker to reproduce a wide range of audio while maintaining the output expected from the SPL Show Series. It's a balanced design that focuses on delivering strong volume, clear highs, and dependable performance in a compact package.

Specifications

• Speaker Size: 165 mm (6.5")
• Configuration: 2-Way Coaxial
• Continuous Power Handling: 100 Watts RMS
• Peak Power: 200 Watts
• Impedance: 4 Ohms
• Frequency Response: 100 Hz - 20 kHz
• Sensitivity: 96.5 dB

If you're looking for compact speakers that prioritize high output, durability, and efficient performance, the Hertz SX 165 NEO delivers exactly that. From its weather-resistant cone and powerful Neodymium motor to its protected Hi-SPL tweeter and heavy-duty voice coil, every detail is designed to produce loud, reliable sound in demanding environments.

---

FAQs

1. What size are the Hertz SX 165 NEO speakers? The Hertz SX 165 NEO features a 165 mm (6.5-inch) 2-way coaxial speaker design.
2. How much power can these speakers handle? Each pair is rated for 100 watts RMS continuous power handling and can handle up to 200 watts of peak power.
3. Are the Hertz SX 165 NEO speakers suitable for outdoor use? Yes. They feature a water-resistant, humidity-resistant, and anti-UV treated pressed-paper cone along with a protective rubber gasket for outdoor applications.
4. What type of tweeter is used in the speakers? The speaker uses a 1.4-inch PEI dome tweeter with a Neodymium magnet and a resettable solid-state protection circuit.
5. Can multiple Hertz SX 165 NEO speakers be connected together? Yes. Double Faston terminals allow daisy-chaining of multiple speakers while maintaining compatibility with many common motorcycle audio connections.

---
